Stacker Forks

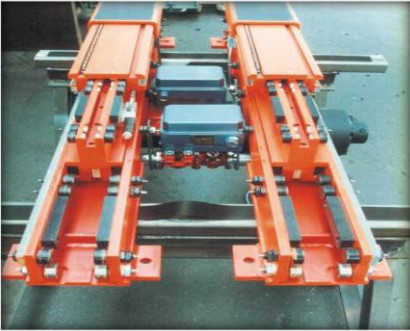

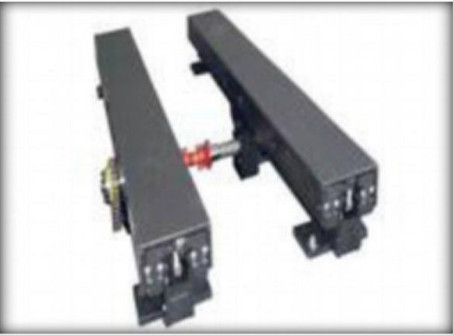

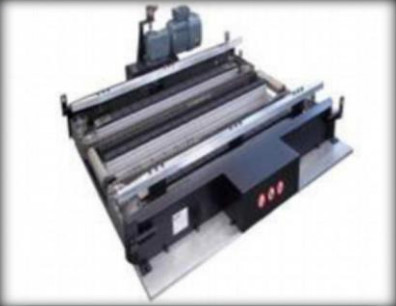

The fork of the stacker can be structurally divided into single extension fork (or single depth fork) and double extension fork (or double depth fork), and morphologically, it can also be divided into single row fork and double row fork. The single extension fork is composed of three sections or three sections of a fork body, referred to as a three level fork or three level fork (three section fork)! The double deep fork is composed of four prongs, so we call it a four prong fork or a four prong fork! The so-called single row fork refers to a single piece or single arm fork, which belongs to the light type fork. Generally, it is used for the storage or transfer of small volume or light weight items, such as hardware products, light industrial products, electronic products, food packaging, and so on! The double row fork is composed of two fork arms, which belongs to the heavy type fork. It is suitable for accessing or moving large and heavy items! Such as: metal materials, mechanical equipment, vehicle frames, mold accessories, etc!
key word:
Product classification:
Product description
 |
 |
|
Single extension fork |
Double extension fork |
 |
 |
|
Holding fork |
Push and pull fork clip |
Main specifications
|
Electronic parts |
Brand |
|
running motor gear box |
SEW/Sumitomo |
|
lift up motor gear box |
SEW/Sumitomo |
|
cargo folk motor gear box |
SEW/Sumitomo |
|
PLC |
Siemens |
|
Operation touch screen |
Siemens |
|
Drive |
Siemens 、Danfoss 、CT |
|
Sensor switches |
Leuze 、Omron 、SICK |
|
Low voltage electronic spare parts |
Schneider |
Related products
Main functions of the stacker: In fact, this kind of equipment is a kind of storage and delivery equipment in an automated three-dimensional warehouse, usually divided into single column and double column structures. The overall use requirements are achieved through walking, lifting, and other mechanisms. In addition, advanced servo control systems and certification systems perform fully closed loop control, and the use of high-precision address recognition such as barcode or laser ranging can enable the equipment to operate with high accuracy. It is also a lifting device used for forks to access goods from high-rise shelves. The warehouse using this device can reach about 45 meters, and the stacker can operate in the passageway between the shelves and handle items loaded on or toward the pallets. Characteristics of the stacker: 1. Structural characteristics In terms of structure, it has different structures such as single column and double column, and there are also two types of cargo forks: European standard cargo forks and Japanese standard plate forks. The former corresponds to crossbeam type shelves, while the latter corresponds to bracket type shelves. This type of equipment can greatly improve the use area and space utilization rate of the warehouse, reduce manual operations, and improve the overall warehousing operation effect and automation level. 2. Usage characteristics The equipment can be divided into straight track type, curved track type, transition track type, and fork track type according to the direction of the channel. In addition, there is a selection type equipped with a cab. Its structure is very stable and reliable, and it is controlled through vector frequency conversion drive and encoder position. The use of mechanical and electrical dual protection devices to ensure safety, coupled with information transmission and full tracking technology, effectively improves the overall equipment function. Imported electrical components, The fake face operation of the touch screen not only makes the operation simpler, but also provides time manual, click automatic, and online automatic control effects.
This product is in line with international standards, with the same indicators, functions and performance as international products, and can be used for export products. The research and development of light four-way shuttle makes up for the multi-dimensional defects of the current two-way shuttle movement
Shuttle truck three-dimensional warehouse is a high-density automatic storage system composed of shelves, shuttle trucks, and forklifts, which can achieve semi-automatic operations.
The mother-daughter shuttle is an intelligent handling device in one automated storage flow system. With the characteristics of dynamic transfer, it can make the transportation layout of items between various shelves more compact and simple, thereby improving the transportation efficiency of items. High degree of automation and flexibility. The sub-mother shuttle is composed of two-way sub-shuttle and mother shuttle, as well as tracks, walking roadways, goods roadways, track-through dense shelves, reciprocating lifts, layer change hoists, outbound conveyor lines, inbound conveyor lines, and computer control systems.
There are two main forms of shuttle vehicles in warehousing and logistics equipment: shuttle vehicle type inbound and outbound systems and shuttle vehicle type warehousing systems. They are trolleys that operate on fixed tracks in a reciprocating or looping manner to transport goods to designated locations or connecting equipment. Equipped with an intelligent sensing system, it can automatically memorize the origin position and automatically decelerate the system.
