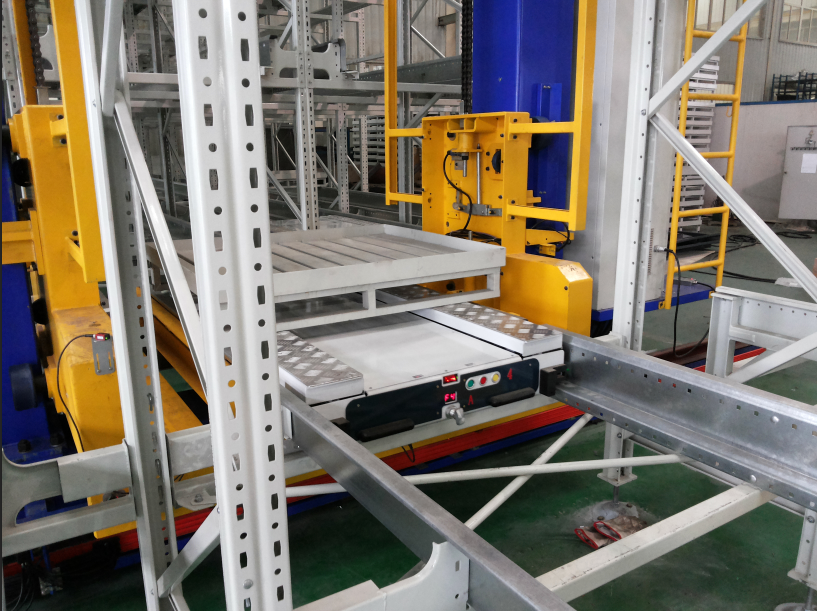

Four-directional Stacker Crane
System performance description and application scenarios:1. The four-way stacker is a kind of intelligent handling equipment that can realize both vertical and horizontal walking.
key word:
四向堆垛机
Product classification:
Product description
System performance description and application scenarios:
1. The four-way stacker crane is an intelligent handling equipment that can realize both longitudinal and lateral walking.
2. The four-way stacker crane has high flexibility and can change the operation roadway at will.
3. It is especially suitable for low-flow, high-density storage.
4. The four-way stacker vertical warehouse maximizes the cost and resources.
Advantage:
1. Replace narrow aisle high forklifts.
2. Stable, safe and reliable use.
3. It can realize manual, semi-automatic and fully automatic operation.
4. The number of stacker cranes can be increased or decreased according to the efficiency.
5. Simple maintenance.
6. Power monitoring, automatic charging (multi-level threshold control).
Scope of application:
Warehouses in pharmaceutical, tobacco, food, beverage, e-commerce and other industries.
